Securing Microservices with OAuth2 and JWT in Spring Boot

As microservices communicate independently, securing them becomes critical. OAuth2 and JWT (JSON Web Token) are widely adopted for secure, scalable, and stateless authentication.

This guide walks through:

What is OAuth2 and JWT
Securing Spring Boot microservices with OAuth2
Using JWT tokens for API access
Sample architecture and code setup

Securing Microservices with OAuth2 and JWT

📘 1. What is OAuth2 and JWT?

OAuth2: An authorization framework that allows secure access to protected resources via tokens.
JWT (JSON Web Token): A compact, URL-safe token format used to represent claims between two parties. Typically used in OAuth2 to represent the access token.

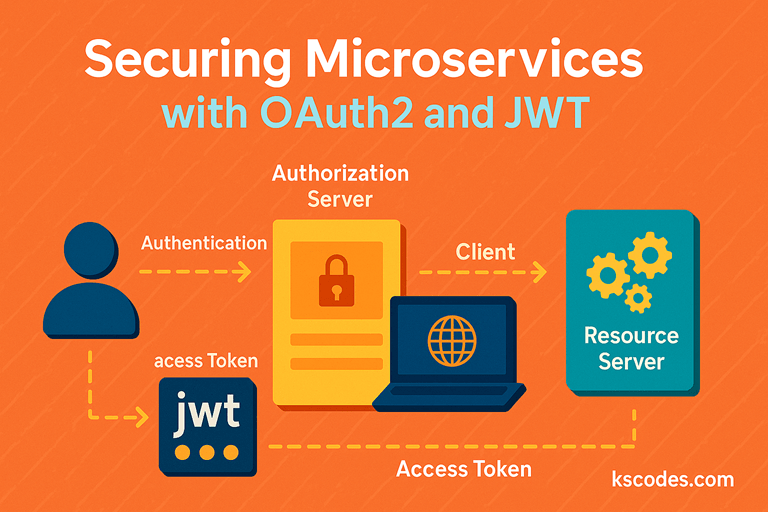

🏗 2. Microservice Security Architecture

🔄 Architecture Flow:

User authenticates with Authorization Server (e.g., Keycloak / Okta).
Authorization Server issues a JWT access token.
Client sends this token in HTTP headers when accessing microservices.
Microservices validate the token and allow/deny access.

⚙️ 3. Add Required Dependencies

✅ `pom.xml`

<groupid>org.springframework.boot</groupid>

<artifactid>spring-boot-starter-oauth2-resource-server</artifactid>

</dependency>

<groupid>org.springframework.boot</groupid>

<artifactid>spring-boot-starter-security</artifactid>

</dependency>

📂 4. Project Package Structure

com.kscodes.springboot.microservice

│

├── config

│ └── SecurityConfig.java

├── controller

│ └── ProductController.java

└── Application.java

🔒 5. Resource Server Configuration

✅ `SecurityConfig.java`

package com.kscodes.springboot.microservice.config;

import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.security.config.annotation.web.builders.HttpSecurity;

import org.springframework.security.web.SecurityFilterChain;

@Configuration

public class SecurityConfig {

@Bean

public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {

http

.authorizeHttpRequests(auth -> auth

.requestMatchers("/api/public/**").permitAll()

.anyRequest().authenticated()

)

.oauth2ResourceServer(oauth2 -> oauth2.jwt());

return http.build();

}

🧾 6. application.yml Configuration

spring:

security:

oauth2:

resourceserver:

jwt:

issuer-uri: https://auth-server.com/realms/kscodes

jwk-set-uri: https://auth-server.com/realms/kscodes/protocol/openid-connect/certs

📦 7. JWT Token Format Example

Decoded JWT token:

{

"sub": "john.doe",

"preferred_username": "john.doe",

"roles": ["USER", "ADMIN"],

"iat": 1710000000,

"exp": 1710003600

}

🧪 8. Sample Controller

✅ `ProductController.java`

package com.kscodes.springboot.microservice.controller;

import org.springframework.web.bind.annotation.*;

import java.security.Principal;

@RestController

@RequestMapping("/api/products")

public class ProductController {

@GetMapping

public String getProducts(Principal principal) {

return "Hello " + principal.getName() + ", here are your products.";

}

@GetMapping("/public")

public String publicEndpoint() {

return "This endpoint is public and does not require a token.";

}

🔐 9. JWT Authentication in Request

Client Call Example:

GET /api/products HTTP/1.1

Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...

Spring Security will automatically:

Parse the JWT
Validate its signature and expiration
Populate the Principal with the claims

🧠 10. Role-Based Access Control (RBAC)

You can add fine-grained access control using Spring Security expressions.

.authorizeHttpRequests(auth -> auth

.requestMatchers("/api/admin/**").hasRole("ADMIN")

.anyRequest().authenticated()

)

📊 11. Token Generation (Using Keycloak)

If using Keycloak:

Create a realm
Register a client (set to confidential)
Enable “Authorization” and “Direct Access”
Use client_id, client_secret to request a token:

curl -X POST http://localhost:8080/realms/kscodes/protocol/openid-connect/token \

-H "Content-Type: application/x-www-form-urlencoded" \

-d "client_id=myclient&client_secret=abc123&grant_type=password&username=john&password=123456"

✅ Conclusion

Securing microservices with OAuth2 and JWT in Spring Boot enables robust, scalable, and stateless authentication. It allows services to independently validate tokens, minimizing coupling and improving scalability.

🔑 With OAuth2 and JWT:

APIs are protected
Tokens are self-contained and verifiable
Authorization can be role or scope-based
